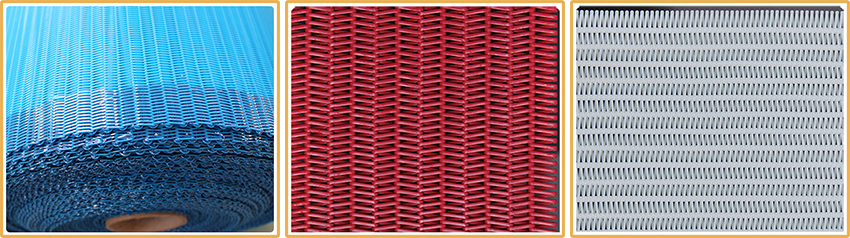

Spiral Dryer Fabric
Hightop has developed a wide range of spiral dryer fabric to meet our client’s needs helping to reduce operation cost through energy efficient solutions. Also called as Spiral link dryer fabric or SLDF, the fabric is composed of abrasion resistant PET and hydrolysis. Depending on the filler wire added to the fabric, air permeability range from 600 to 1380 CFM.
Features:
- No markings
- Diagonal and high dimensional stability
- Wear resistant
- Equal tension profile
- No problem when it comes to the seam area
Applications:
- Pulp board
- Cultural paper
- Dry packing paper
- Board paper
The spiral dryer fabric is widely used in paper making, mining, food, pharmaceutical, printing and dyeing, rubber industry. Also could be used as conveyor belt and the laminating machine matching belt.
| Type of spiral dryer fabric | Model of Fabrics | Wire Diameter (mm) | Strength (N/cm) | Air Permeability (CFM) | |
| Warp | Weft | Area of Surface | |||
| Small Loop | LW 3253 | 0.5 | 0.7 | ≥1800 | 938 |
| Medium Loop | LW 3868 | 0.7 | 0.9 | ≥2000 | 1000 |
| Medium Loop (Flat Wire) | JLW 3868 | 0.48 * 0.82 | 0.8 | ≥2000 | 625 |
| Large Loop | LW 4080 | 0.9 | 1.1 | ≥2000 | 1125 |
